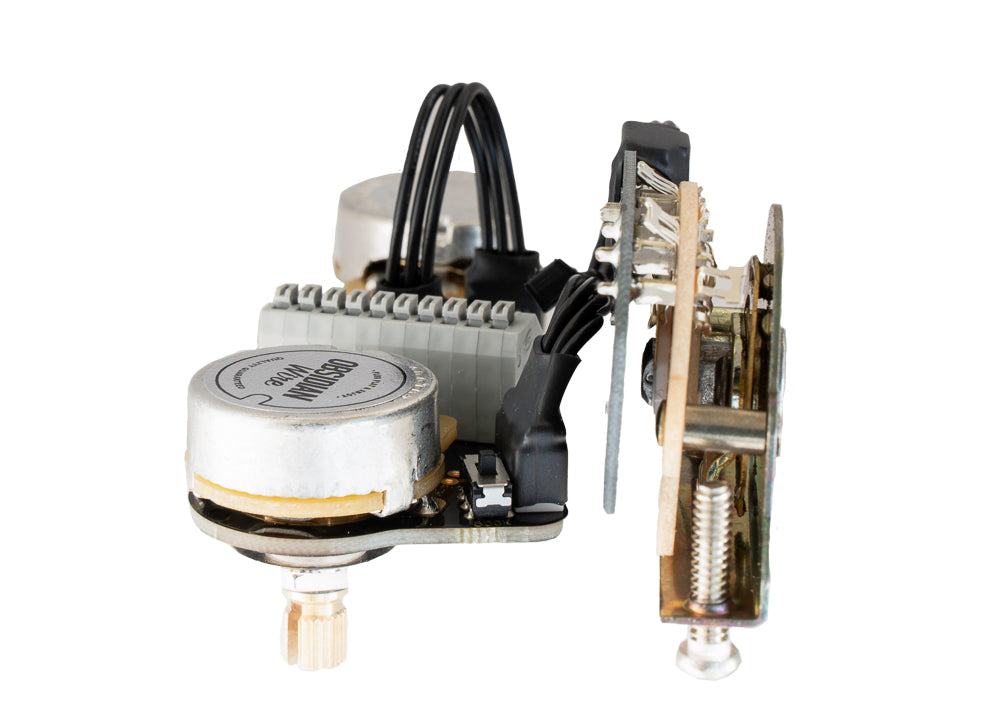

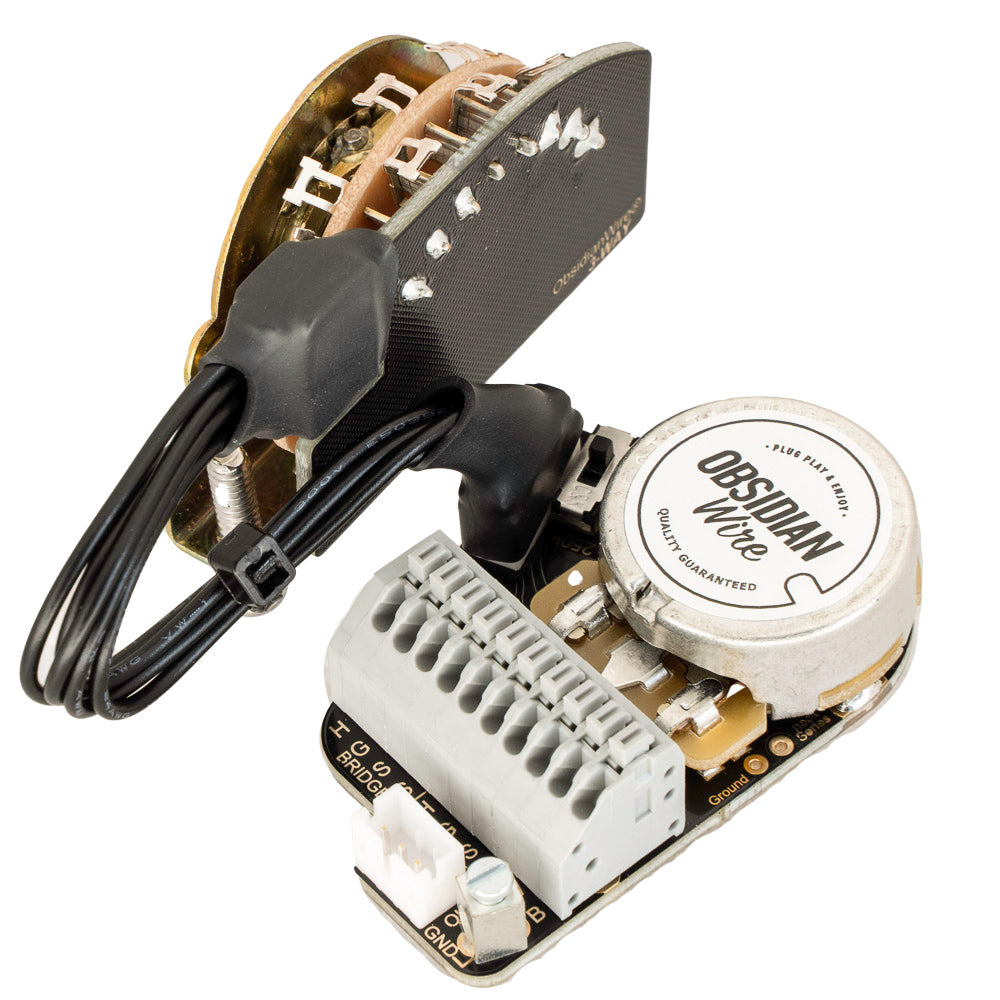

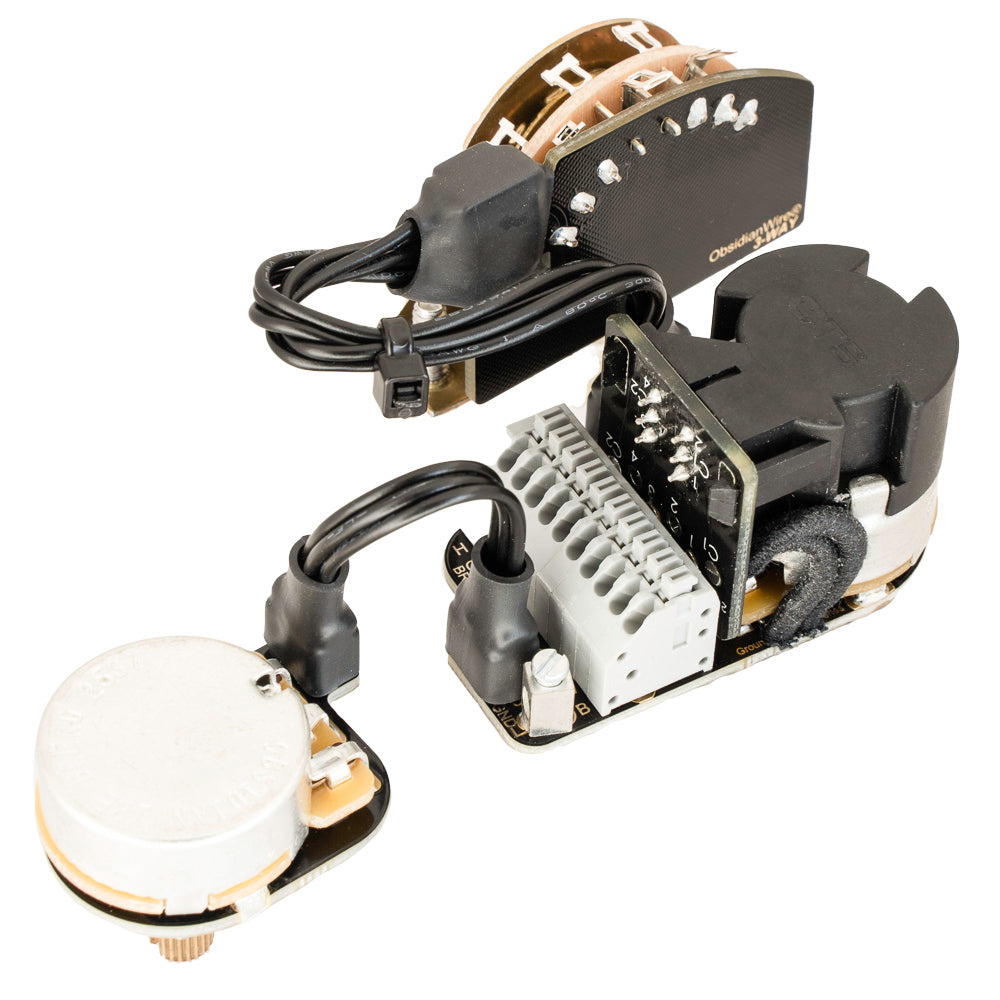

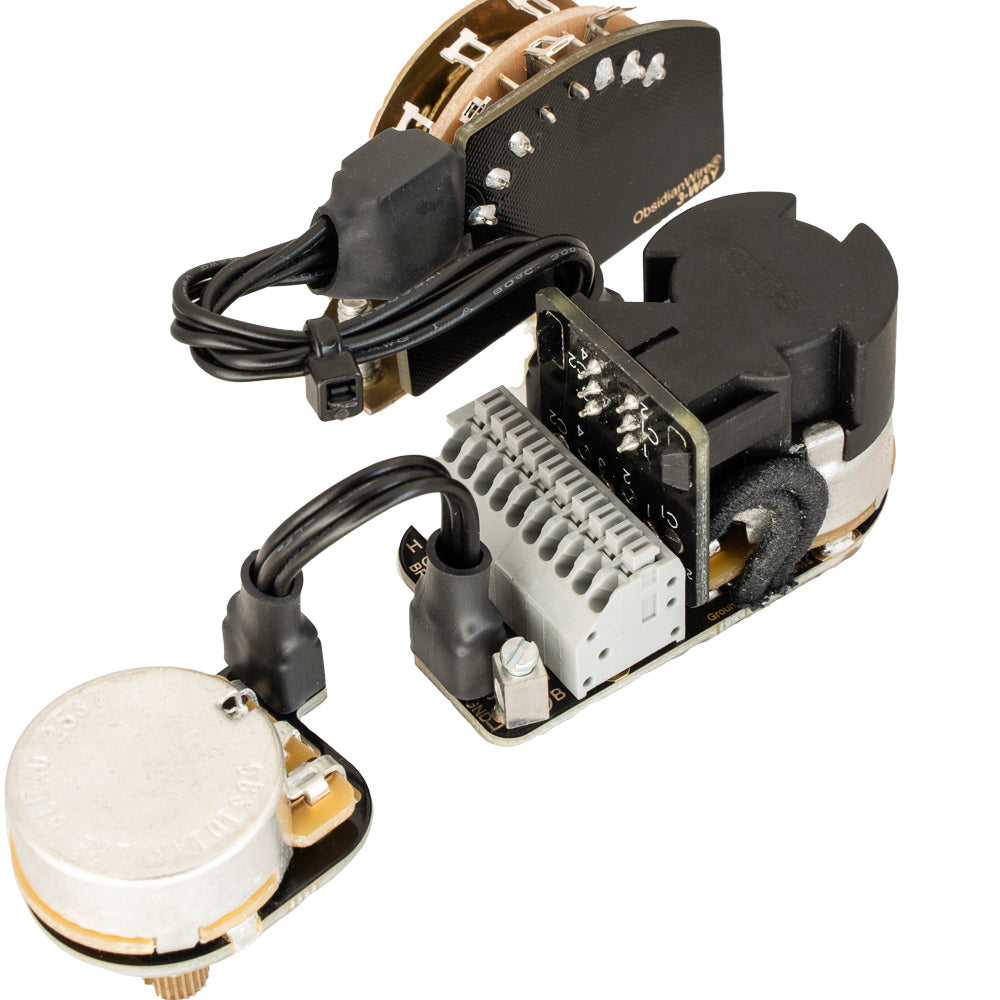

M2-S | S-Style Wiring for HH, SS, HS & SH

Flex-Series Wiring Harness for HH, SS, HS & SH SuperStrat & Strat Style Guitars

A flexible solderless wiring harness for two-pickup Strat-style and SuperStrat guitars.

Configure your M2-S for HH, SS, HS or SH pickup layouts, with switchable 250k/500k volume, optional tone control and optional tuned coil splitting.

Two Switchable 'Modes' (250k & 500k)

Easily optimize the wiring for your pickups.

• Mode 1: 250k  Best for Single Coils - Tame Excess Highs
• Mode 2: 500k  Best for Humbuckers - Greater clarity & output

Compatible Pickup Configurations

HH — Humbucker / Humbucker

Ideal for two-humbucker SuperStrats and S-style guitars.

SS — Single Coil / Single Coil

For two-single-coil S-style guitars.

HS — Humbucker / Single Coil

For H/S configurations using a humbucker in the bridge position and single coil neck

SH — Single Coil / Humbucker

For S/H configurations with the humbucker in the neck position.

ObsidianWire IGNEOS™ Firm Grip Pots

ObsidianWire® IGNEOS™ guitar pots are the new standard for pro-grade guitar wiring.

• Durable Design - for years of trouble free use
• Firm Grip Turning - For a solid feel and secure settings
• Fine Tolerance - Guaranteed to spec +/- 10%

CRYSTAL CLEAR TONE (Treble Bleed)

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

Upgrade Option

 - DUAL TUNED SC (COIL SPLIT)

Turn your humbucker(s) in to a single coil, and back again. To add true versatility to your guitar we build in DUAL TUNED SC, to split your humbucker(s) to a single-coil for lower output, more dynamic tones.To keep your single coils sound full and vibrant, we use Tuned 'partial split' technology, for higher output sound with fuller mids, than is possible with a full split.

• Requires split coil compatible humbuckers

Tone Control Options

 - PURE OUTPUT - No Tone Control

Maximize clarity by losing the tone control - Tone controls cause output loading even when they are wound to 10. Removing the tone control completely means you avoid the tone suck, for clearer fuller tone.

- SMOOTH TONE CONTROL

Add a custom designed master tone control using our ObsidianWire designed, CTS built IGNEOS™ pots, for a smooth and useable tone control taper.

Two Shaft Length Options:

 - Short Shaft: Pickguard / Control Plate Mount Only

 - Long Shaft: Rear / Cavity Mount Only

- Standard Long Shaft: Min Body Thickness 33mm
- Push / Pull Long Shaft: Min Body Thickness 45mm
